Visualize your GitHub dependency security alerts

This guide demonstrates how to set up a monitoring solution to gain visibility into security alerts from GitHub’s Dependabot. You’ll learn how to visualize vulnerability alerts across your repositories and track them over time using Port's GitHub integration.

Common use cases

Monitor open and resolved Dependabot alerts across repositories.
Identify repositories with a high number of unresolved alerts.
Understand the distribution of alerts by severity and package ecosystem (e.g., npm, Maven, PyPI).

Prerequisites

This guide assumes the following:

You have a Port account and have completed the onboarding process.
Port's GitHub app is installed in your account.

Set up data model

When installing the GitHub app in Port, the Repository blueprint is created by default.
However, the Dependabot Alert blueprint is not created automatically, so we will need to create it manually.

Create the Github dependabot alert blueprint

Follow the steps below to create the Dependabot Alert blueprint.
Skip to the set up data source mapping section if you already have the blueprint.

Go to your Builder page.
Click on + Blueprint.
Click on the {...} button in the top right corner, and choose Edit JSON.

Add this JSON schema:

GitHub dependabot alert blueprint (Click to expand)

{
    "identifier": "githubDependabotAlert",
    "title": "Dependabot Alert",
    "icon": "Github",
    "schema": {
        "properties": {
        "severity": {
            "title": "Severity",
            "type": "string",
            "enum": ["low", "medium", "high", "critical"],
            "enumColors": {
            "low": "yellow",
            "medium": "orange",
            "high": "red",
            "critical": "red"
            },
            "icon": "DefaultProperty"
        },
        "state": {
            "title": "State",
            "type": "string",
            "enum": ["auto_dismissed", "dismissed", "fixed", "open"],
            "enumColors": {
            "auto_dismissed": "green",
            "dismissed": "green",
            "fixed": "green",
            "open": "red"
            },
            "icon": "DefaultProperty"
        },
        "packageName": {
            "icon": "DefaultProperty",
            "title": "Package Name",
            "type": "string"
        },
        "packageEcosystem": {
            "title": "Package Ecosystem",
            "type": "string"
        },
        "manifestPath": {
            "title": "Manifest Path",
            "type": "string"
        },
        "scope": {
            "title": "Scope",
            "type": "string"
        },
        "ghsaID": {
            "title": "GHSA ID",
            "type": "string"
        },
        "cveID": {
            "title": "CVE ID",
            "type": "string"
        },
        "cvssScore": {
            "type": "number",
            "title": "CVSS Score"
        },
        "url": {
            "title": "URL",
            "type": "string",
            "format": "url"
        },
        "references": {
            "icon": "Vulnerability",
            "title": "References",
            "type": "array",
            "items": {
            "type": "string",
            "format": "url"
            }
        },
        "alertCreatedAt": {
            "icon": "DefaultProperty",
            "type": "string",
            "title": "Alert Created At",
            "format": "date-time"
        },
        "alertUpdatedAt": {
            "icon": "DefaultProperty",
            "type": "string",
            "title": "Alert Updated At",
            "format": "date-time"
        }
        },
        "required": []
    },
    "mirrorProperties": {},
    "calculationProperties": {},
    "relations": {
        "repository": {
        "title": "Repository",
        "target": "githubRepository",
        "required": true,
        "many": false
        }
    }
}

Click Save to create the blueprint.

Set up data source mapping

Go to your Data Source page.
Select the GitHub integration.

Add the following YAML block into the editor to ingest data from GitHub:

GitHub integration configuration (Click to expand)

resources:
- kind: repository
    selector:
    query: 'true'
    port:
    entity:
        mappings:
        identifier: .name
        title: .name
        blueprint: '"githubRepository"'
        properties:
            readme: file://README.md
            url: .html_url
            defaultBranch: .default_branch
            visibility: .visibility

- kind: dependabot-alert
    selector:
    query: "true"
    port:
    entity:
        mappings:
        identifier: .repo.name + "-" + (.number | tostring)
        title: .number | tostring
        blueprint: '"githubDependabotAlert"'
        properties:
            state: .state
            severity: .security_advisory.severity
            packageName: .dependency.package.name
            packageEcosystem: .dependency.package.ecosystem
            manifestPath: .dependency.manifest_path
            scope: .dependency.scope
            ghsaID: .security_advisory.ghsa_id
            cveID: .security_advisory.cve_id
            cvssScore: .security_advisory.cvss.score
            url: .html_url
            references: "[.security_advisory.references[].url]"
            alertCreatedAt: .created_at
            alertUpdatedAt: .updated_at
        relations:
            repository: .repo.name

Click Save & Resync to apply the mapping.

Visualize metrics

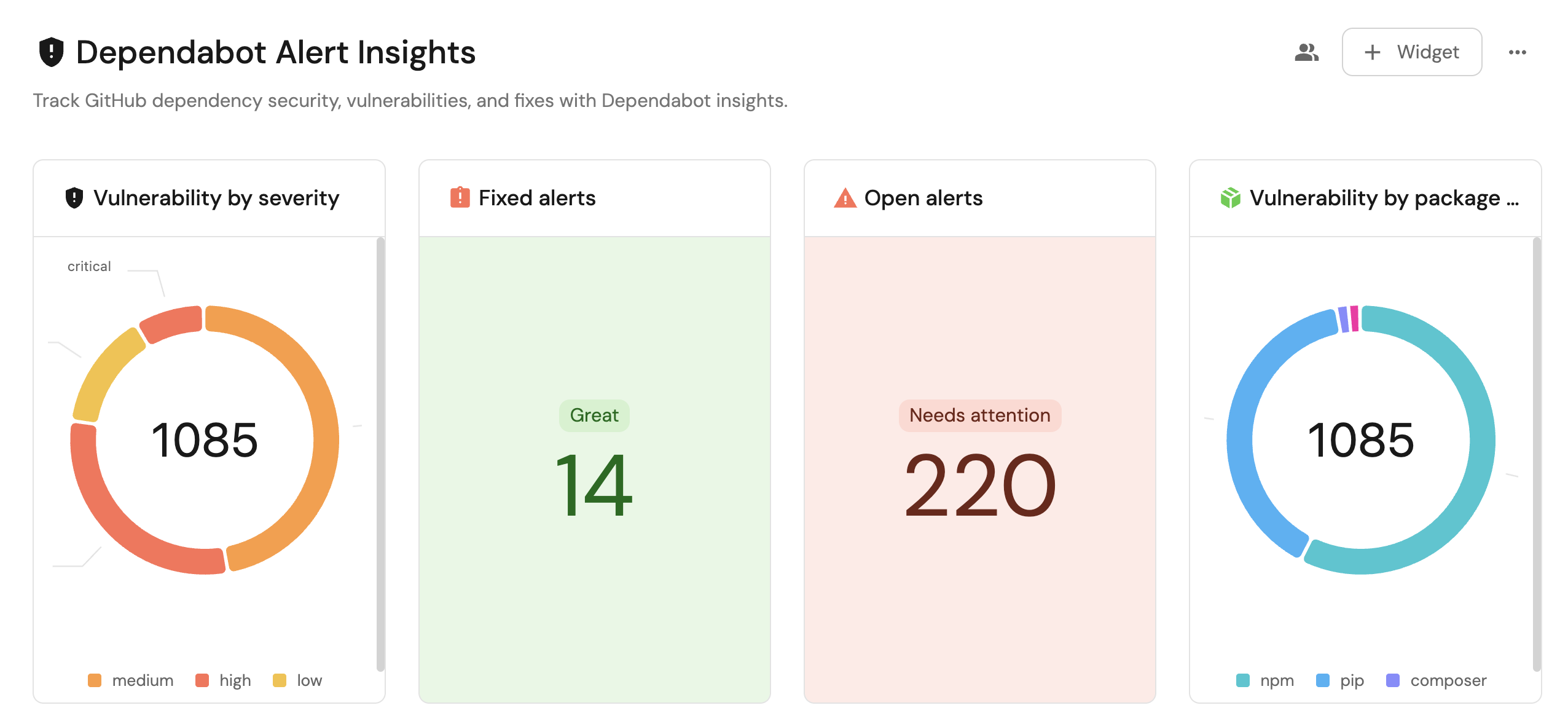

Once the GitHub data is synced, we can create a dedicated dashboard in Port to monitor and analyze dependency vulnerability alerts using customizable widgets.

Create a dashboard

Navigate to your software catalog.
Click on the + New button in the left sidebar.
Select New dashboard.
Name the dashboard Dependabot Alert Insights.
Select the Vulnerability icon.
Click Create.

We now have a blank dashboard where we can start adding widgets to visualize insights from the Dependabot alerts.

Add widgets

In the new dashboard, create the following widgets:

Vulnerability by severity (click to expand)

Click + Widget and select Pie chart.
Title: Vulnerability by severity.
Choose the Dependabot Alert blueprint.
Under Breakdown by property, select the Severity property
Click Save.

Vulnerability by package type (click to expand)

Click + Widget and select Pie chart.
Title: Vulnerability by package type.
Choose the Dependabot Alert blueprint.
Under Breakdown by property, select the Package Ecosystem property
Click Save.

Open alerts updated in the last 6 months (click to expand)

Click + Widget and select Number Chart.
Title: Open alerts (add the Alert icon).
Select Count entities Chart type and choose Dependabot Alert as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter open alerts updated in the last 6 months:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"state",
                "operator":"=",
                "value":"open"
            },
            {
                "property":"alertUpdatedAt",
                "operator":"between",
                "value":{
                "preset":"last6Months"
                }
            }
        ]
    }
]

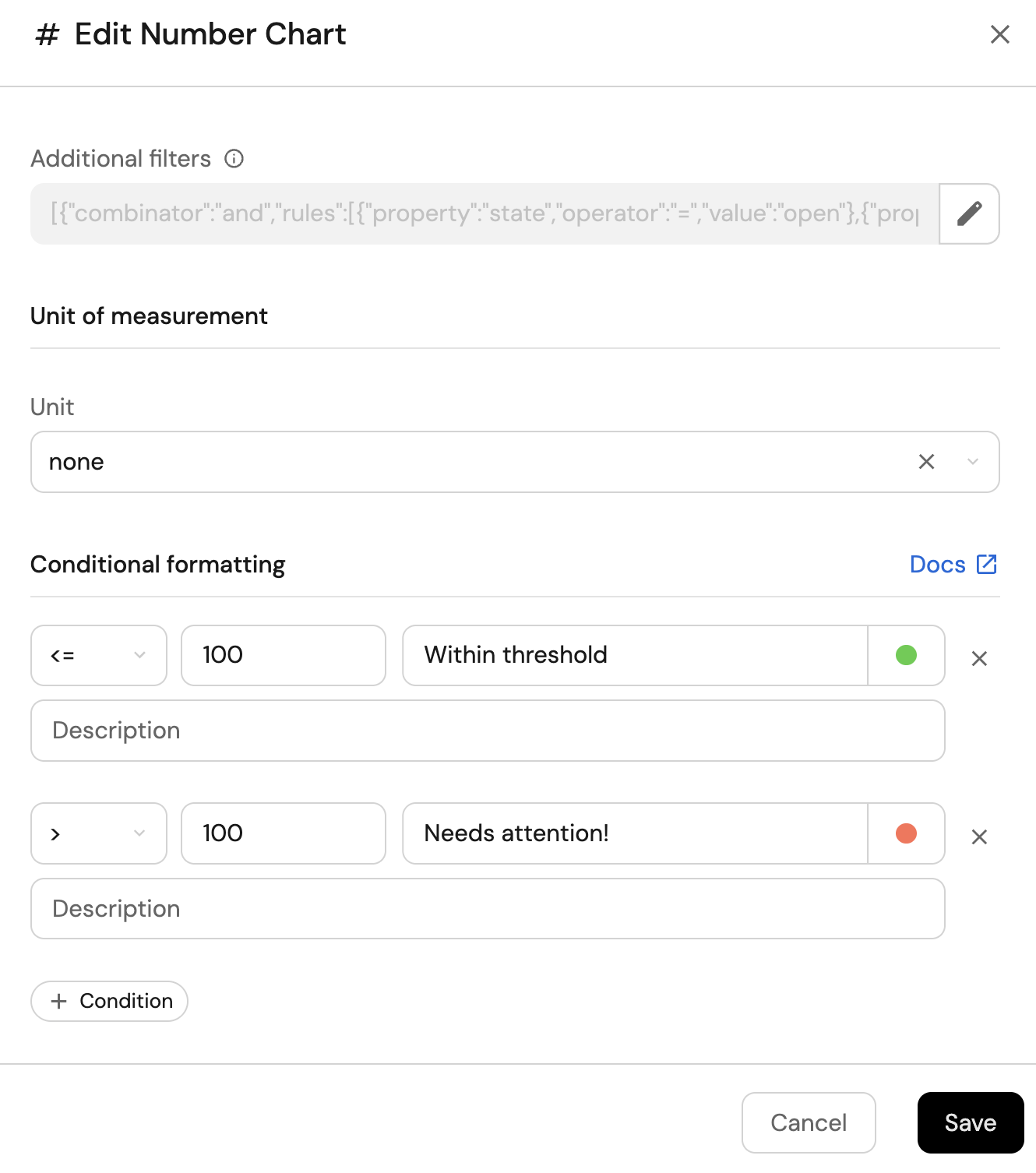

You may optionally configure conditional formatting to contextualize the numbers on the widget.
Click Save.

Fixed alerts (click to expand)

Click + Widget and select Number Chart.
Title: Fixed alerts (add the BadgeAlert icon).
Select Count entities Chart type and choose Dependabot Alert as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter fixed alerts:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"state",
                "operator":"=",
                "value":"fixed"
            }
        ]
    }
]

Click Save.

Dismissed alerts (click to expand)

Click + Widget and select Number Chart.
Title: Dismissed alerts.
Select Count entities Chart type and choose Dependabot Alert as the Blueprint.
Select count for the Function.

Add this JSON to the Additional filters editor to filter Dismissed alerts alerts:

[
    {
        "combinator":"and",
        "rules":[
            {
                "property":"state",
                "operator":"=",
                "value":"auto_dismissed"
            }
        ]
    }
]

Click Save.

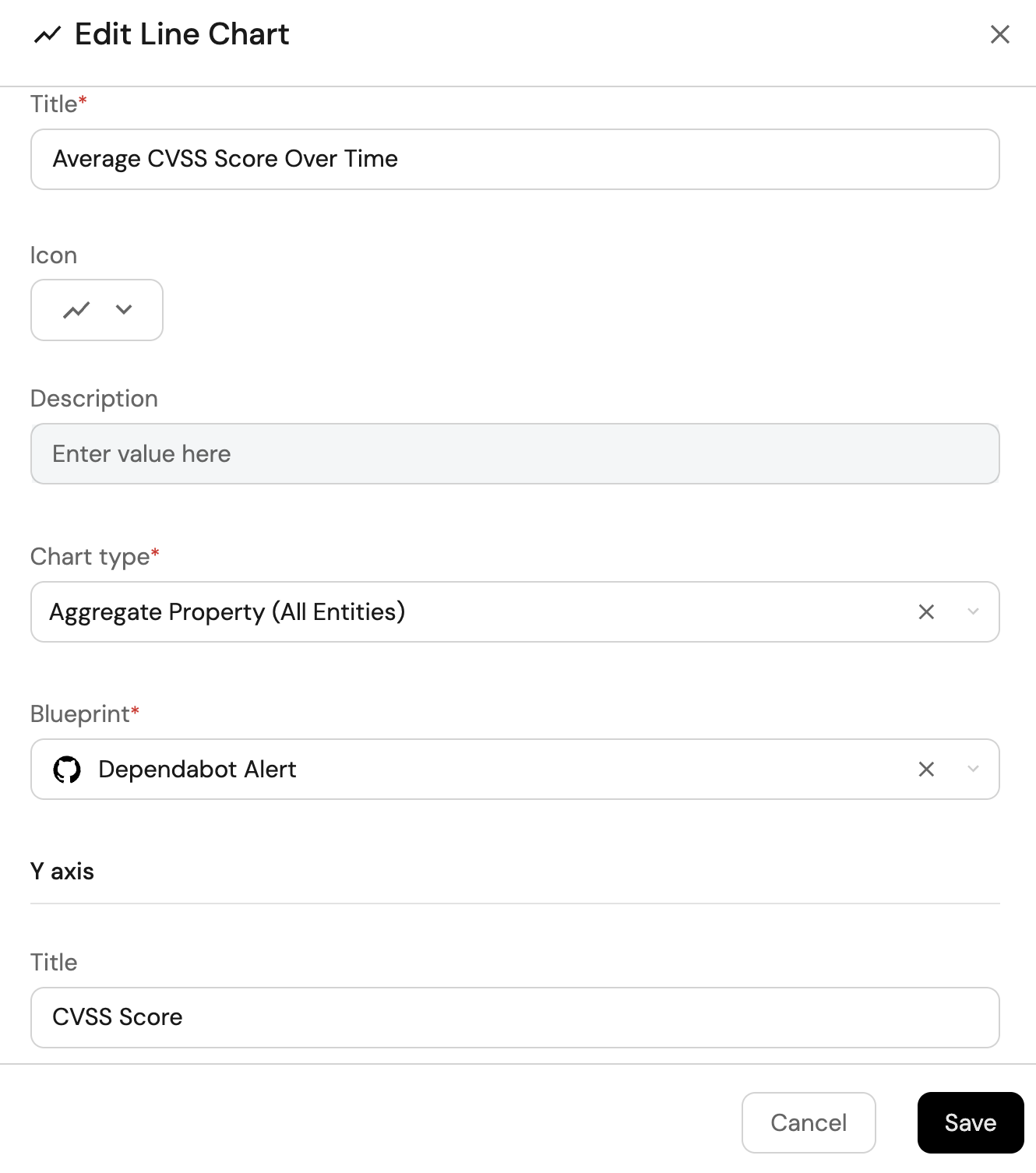

Average CVSS score over time (click to expand)

Click + Widget and select Line Chart.
Title: Average CVSS Score Over Time, (add the LineChart icon).
Select Aggregate Property (All Entities) Chart type and choose Dependabot Alert as the Blueprint.
Input CVSS Score as the Y axis Title and choose CVSS Score as the Property.
Set average as the Function.
Input Months as the X axis Title and choose alertCreatedAt as the Measure time by.
Set Time Interval to Month and Time Range to In the past 365 days.
Click Save.

Repos with unresolved critical alerts (click to expand)

Click + Widget and select Table.
Title the widget Repos with unresolved alerts.
Choose the Dependabot Alert blueprint.
Click Save to add the widget to the dashboard.
Click on the ... button in the top right corner of the table and select Customize table.
In the top right corner of the table, click on Manage Properties and add the following properties:
- Repositry: The name of each related repository.
- Package Name: The name of the package.
- CVE-ID: The ID of the vulnerability.
Click on the Group by any Column on the top right conner and select Repository.
Click on the save icon in the top right corner of the widget to save the customized table.
